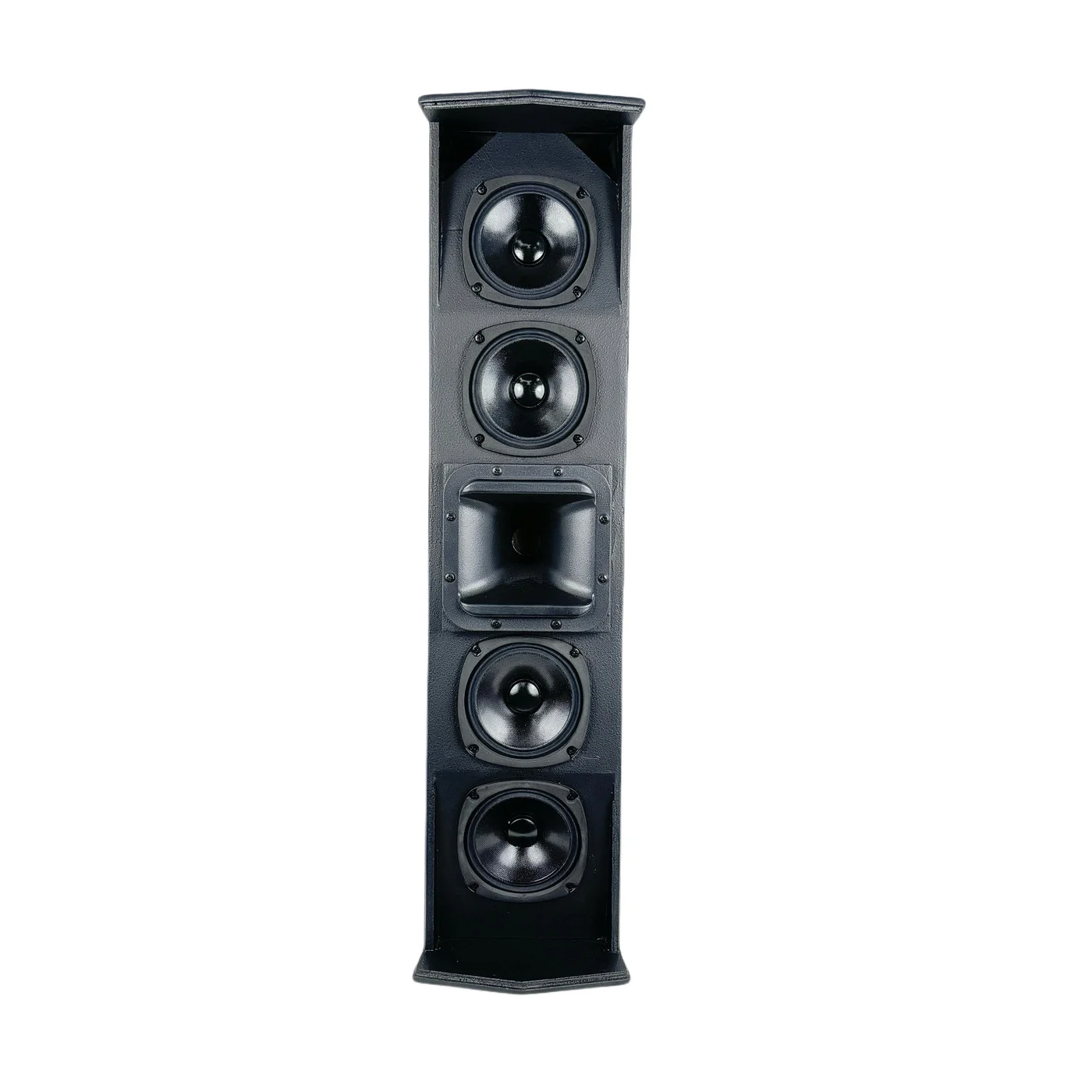

Column PA Speaker
HJSC-HP-404
Type: 4.5" passive two-way full-range speaker
- Type: 4.5" passive two-way full-range speaker
- Frequency range (-10 dB): 80 Hz-20 kHz
- Power (rated / peak) (AES): 200W /1200W
- Sensitivity (1W / 1 m): 95dB
Mobile / WeChat / WhatsApp: 0086 19802069091
- Model
- HJSC-HP-404
- Category
- Column PA Speaker
- Specification
- Type: 4.5" passive two-way full-range speaker
Frequency range (-10 dB): 80 Hz-20 kHz
Power (rated / peak) (AES): 200W /1200W
Sensitivity (1W / 1 m): 95dB
Maximum sound pressure level (1W/1 m): 128dB
Impedance: 8Ω
Directional angle (horizontal × vertical): 110° × 25°
Woofer: 4x4.5" ferrite woofer, 25mm voice coil
Tweeter: 1x1.4" ferrite unit, 34mm voice coil
Input interface: 2 x Neutrik NL-4
pins+1 / -1 input / THRU, pins +2 / -2 empty connection
Suspension system: 12 M8, suspension points,
Box material: 15 mm selected multilayer board / Water-based paint - Customization
- Logo, color, feature set and packaging for qualified OEM / ODM programs.
Type: 4.5" passive two-way full-range speaker
Frequency range (-10 dB): 80 Hz-20 kHz
Power (rated / peak) (AES): 200W /1200W
Sensitivity (1W / 1 m): 95dB
Maximum sound pressure level (1W/1 m): 128dB
Impedance: 8Ω
Directional angle (horizontal × vertical): 110° × 25°
Woofer: 4×4.5" ferrite woofer, 25mm voice coil
Tweeter: 1×1.4" ferrite unit, 34mm voice coil
Input interface: 2 x Neutrik NL-4
pins+1 / -1 input / THRU, pins +2 / -2 empty connection
Suspension system: 12 M8, suspension points,
Box material: 15 mm selected multilayer board / Water-based paint
Woofer: 4.5"
Engineering documents
Datasheets, manuals and compliance files are provided against the confirmed model and market requirement.
Request documentsWhat is the MOQ for column PA speaker systems?
MOQ depends on the column, subwoofer, amplifier, mixer, accessories and packaging configuration.
How long does a column PA sample and bulk order take?
Timing is quoted after the system configuration, power requirement, accessories and customization scope are approved.
Can the column, subwoofer, mixer functions and branding be customized?
Available options may include system configuration, inputs, wireless functions, logo, finish, accessories and packaging, subject to engineering review.
What payment terms apply to complete PA systems?
Terms are set out in the quotation and proforma invoice based on system value, customization and production schedule.
What certifications and warranty support are provided?
Required compliance documents must be matched to the exact system and destination market. Warranty coverage and spare-parts handling are confirmed with the order.
