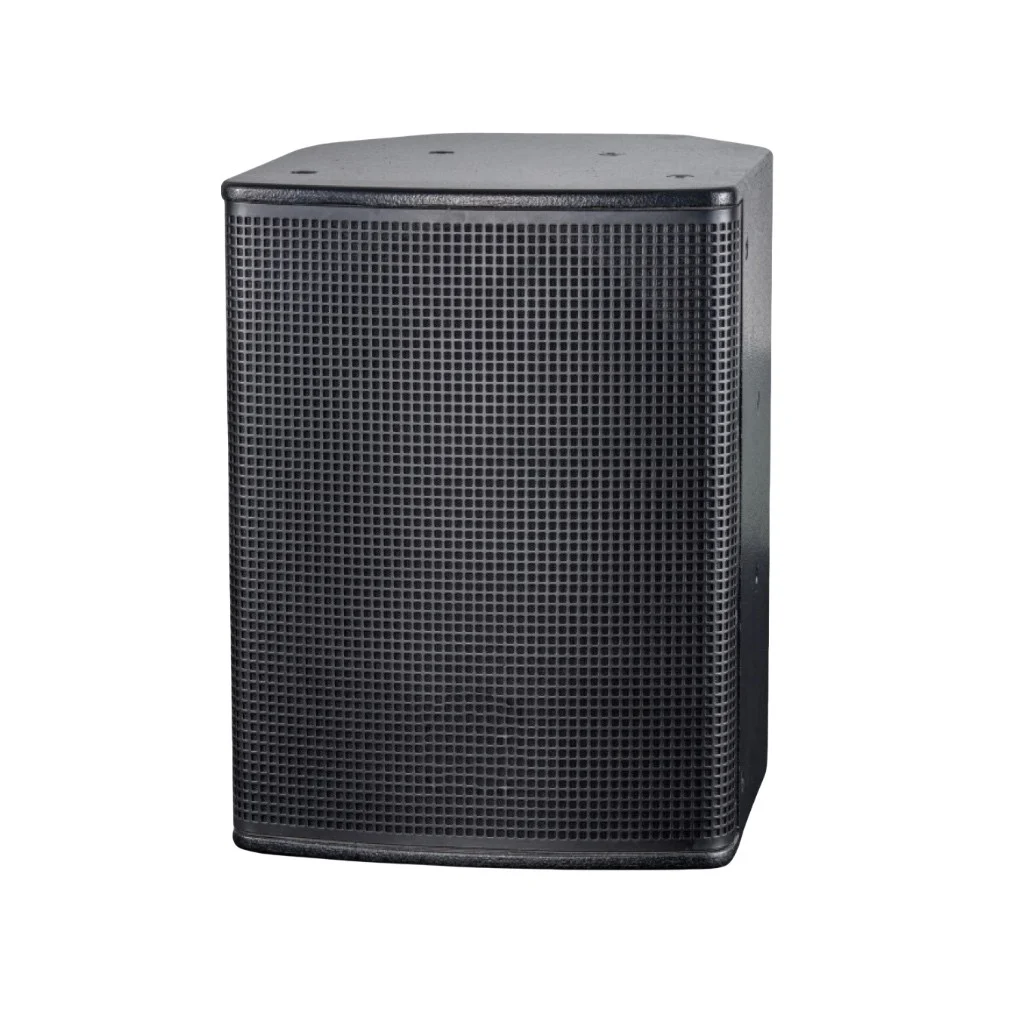

HJPA-ACA108

Type: 8" active coaxial speakers
Frequency range (-10 dB): 65 Hz-20 kHz
Power (rated / peak) (AES): 150 W /600W
Sensitivity (W / 1 m): 94dB
Maximum SPL (1 m): 122dB
Impedance: 8Ω
Directional angle (horizontal × vertical): 80° × 60°
Woofer: 8" ferrite unit × 1, 50mm voice coil
Tweeter: 1.4" ferrite unit, 34mm voice coil
Suspension system: 4 M8, suspension points,
Cabinet material / paint: 15 mm plywood / water-based paint
Amplifier type: Class D amplifier
Signal processing: 96 kHz, 24 bits
Rated power (RMS): 8Ω 200W
Protection: multiple limiting, short circuit, thermal protection
Control: On/Off switch, master volume, bass volume
Indicator light: power indicator, limit indicator, protection indicator
Input/output interface
Line input: Canon male plug signal input × 2PCS
Canon female socket signal output × 2PCS
Dimensions (W × H × D): 240*310*300mm
Packaging size (H x W x D): 420*310*370mm
Net weight: 7.8KG

Woofer: 8"

Dimensions (W × H × D): 240*310*300mm
Packaging size (H x W x D): 420*310*370mm
Net weight: 7.8KG
