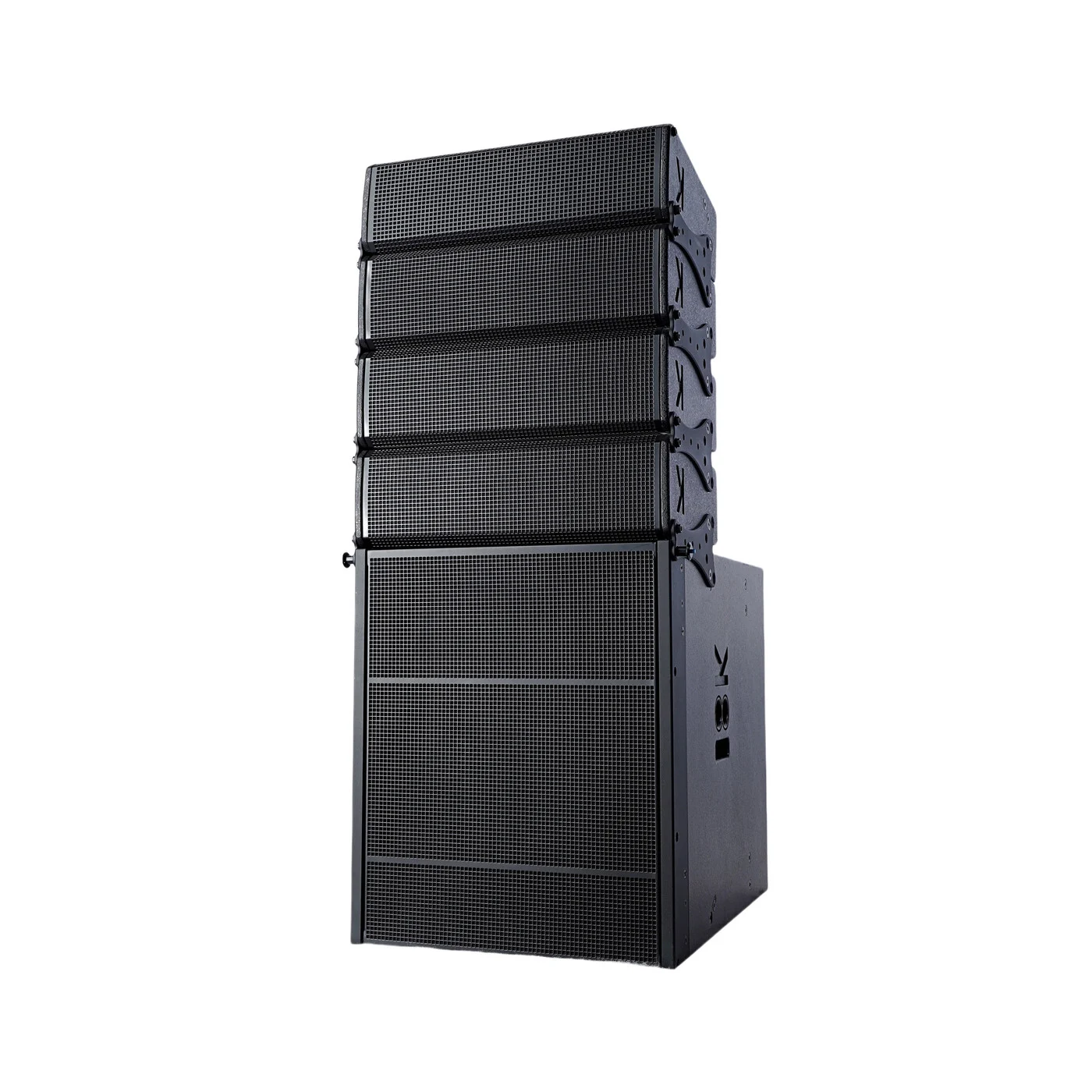

HJPA-AGT204

1. Model: AGT205 full range
2. Type: Dual 5” two-way line array speaker
3. Horizontal directivity (-10 dB): 110°
4. Vertical directivity (-10 dB): 9°
5. Power: RMS / Peak (AES): 100 W / 400 W
6. Bass: 2×4.5” ferrite unit, 25mm voice coil
7. Impedance: 16 Ω
8. Frequency response range (-10 dB): Hz90 – 20KHz
9. Sensitivity (1 W / 1 m): 92 dB Maximum sound pressure level (AES): 120 dB
10. Cabinet: 15mm MDF, cabinet surface spray paint hanging system
11. Input interface: Neutrik® Speakon 2 × NL-4 pins +1 / -1
12. Dimensions (W × H × D): 434 x 133 x 279 mm
13. Packing size (H x W x D): 555x395x655mm
14. Net weight: 6.3kg
15. Gross weight: 25Kg

16. AGT-205 subwoofer
17. Type: 15" active subwoofer
18. Frequency range (-10 dB): 35Hz -1000 Hz
19. Power (rated / peak) (AES): 300 W / 1600 W
20. Sensitivity (1 W / 1 m): 95 dB
21. Maximum sound pressure level (1 m): 124dB
22. Impedance: 8 Ω
23. Woofer: 15" ferrite unit, 65mm voice coil
24. Cabinet: 15mm MDF, painted hanging system on the outer surface of the cabinet
Dimensions (W x H x D): 434 x 524 x 616 mm
Packaging dimensions (H x W x D): 720x625x540 mm
Net weight: 34 kg Gross weight: 37kg
Amplifier
29. Type: Class D amplifier, SMPS power supply
30. Signal processing: DSP. 48 kHz, 24 bits
31. Rated power: 8Ω400W+200W
32. Protection: multiple limiting, short circuit, thermal protection
33. Control: On/Off switch, master audio, bass volume
34. Indicator: power indicator, limiting indicator, protection indicator
35. Input/output interface
Line input: 1×XLR female connector
Line output: 1×XLR male connector
Output interface: Neutrik®Speakon 1× NL-4 pins +1 / -1

Woofer: 15"

Dimensions (W x H x D): 434 x 524 x 616 mm
Packaging dimensions (H x W x D): 720x625x540 mm
Net weight: 34 kg Gross weight: 37kg
