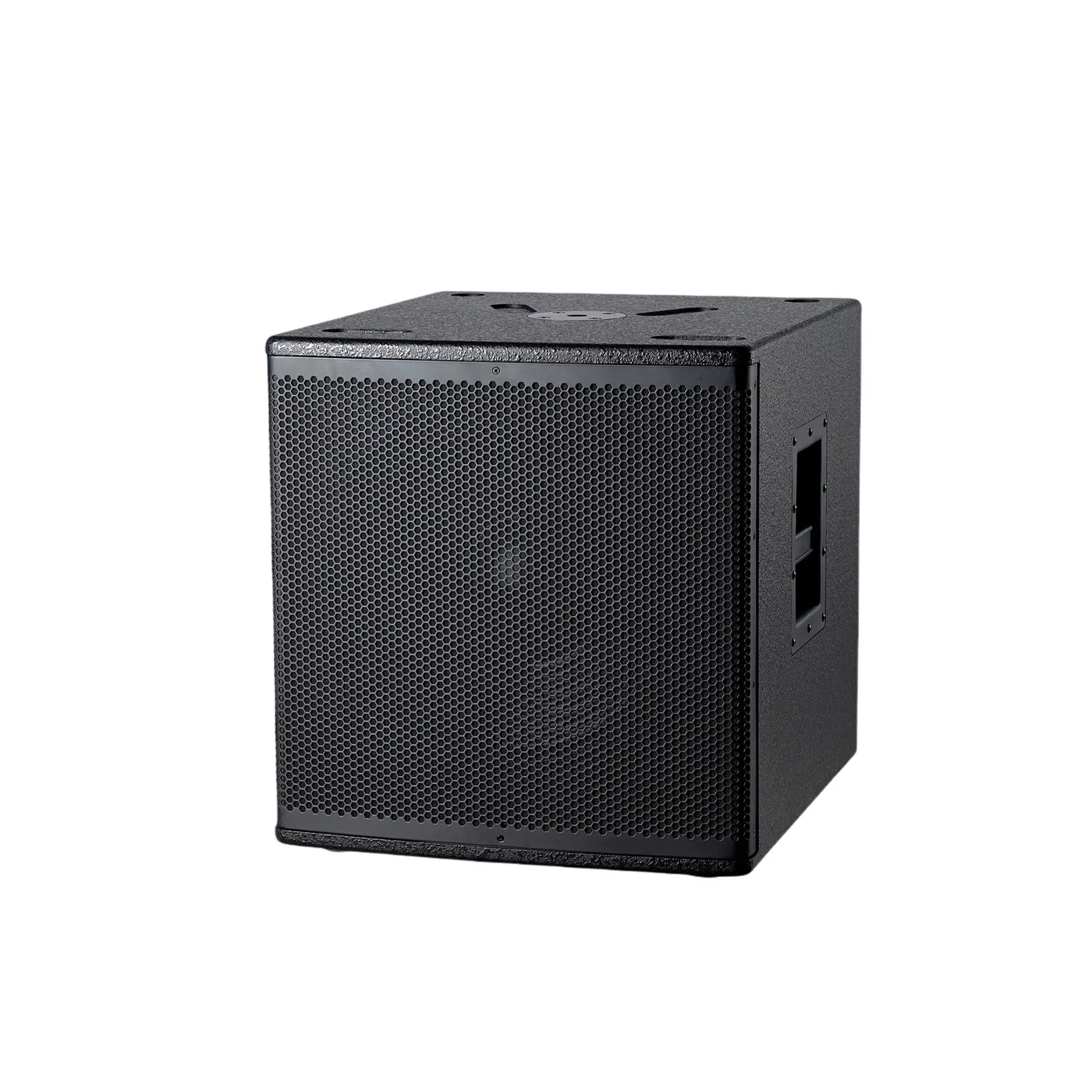

HJPA-ATD115S

Type: Single 15" subwoofer
Frequency range (-10 dB): 35 Hz – 1000Hz
Power (rated / peak) (AES): 450 W /2000 W
Sensitivity (1 W / 1 m): 96dB
Maximum SPL (1 m): 130 dB
Impedance: 8 Ω
Woofer: 15" ferrite unit, 100mm voice coil
Box material/paint: 25 mm selected multilayer board / water-based paint

Amplifier type: Class D amplifier, SMPS power supply
Signal processing: DSP. 48 kHz, 24 bits
Rated power: 8Ω1000W+400W 8Ω
Protection: Multiple limiting, short circuit, thermal protection
Control: On/Off switch, master audio, bass volume
Indicator: power indicator, limiting indicator, protection indicator
Input/output interface: Line input: 1×XLR female Line output: 1 × XLR male connector
Output interface: Neutrik® Speakon 3 × NL-4 pins +1 / -1
Dimensions (W x H x D): 480 x 500 x 550 mm
Packaging dimensions (H x W x D): 600x580x650mm
Net weight: 37kg
Gross weight: 42 kg"

Woofer: 15"

Dimensions (W x H x D): 480 x 500 x 550 mm
Packaging dimensions (H x W x D): 600x580x650mm
Net weight: 37kg
Gross weight: 42 kg
